Repeating Hexagon Shelf Download

Description

PLEASE READ CAREFULLY! This hexagon shelf download is a digital download only! Geared for people with CNC , plasma cutters, laser cutters, etc. You will not receive this as a shelf in the mail. Since there is no way to return a digital download, there are no refunds either.



This was once a flash-free file, so if you like this file and want to have the opportunity to download files like this for free, sign up for the mailing list. No spam, just me emailing you about the topics you tell me your interested in!



This was a really fun design. I created this after finding inspiration in an online picture. Naturally, I had to create one for myself.

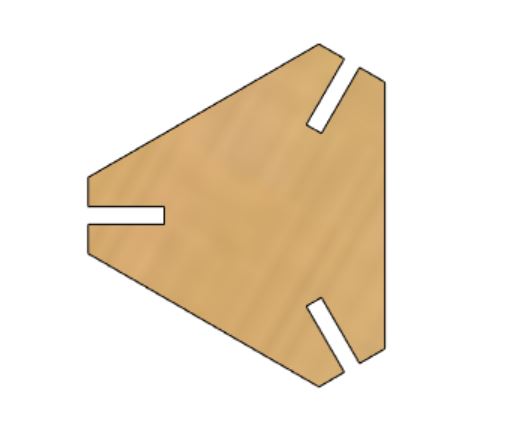

The beauty of this is in the simplicity. There are only three pieces. The shelf, the connectors, and the ‘bottom’ connectors. The bottom connectors are designed to lay flat on the ground. However, you can get creative and use it on the top as well. Mix and match, make it as tall or as small as you want.



The wood I used for this project was from Ocooch Hardwoods though I often use https://amzn.to/3oyG8Xq #ad as well.



Safe yourself some time on sanding and tape your wood. I used this https://amzn.to/3epaUvY  #ad though I recently found a 12 inch version here https://amzn.to/3swMozv #ad that I will be trying out.



I have to plug this camera because I love how the photos came out https://amzn.to/31LEHfm



The spacing between the top and bottom shelves is about 9 inches.



This is designed for three material thicknesses. They are:

.115 Inches (that’s what I used and it was snug)

.125 Inches

.25 Inches

If you need another material thickness, let me know.



These are currently in SVG, PDF, and PNG format. If you need another type please let me know.



Each shelf is 3 inches by 5 inches, but you can cut whatever sized rectangle or square shelf you want. I added the notches on the shelves for some extra stability but the original assembly used regular rectangular cutouts. You can see the original assembly in the pictures with the pallet wood back drop.
